01

Peak rating is only one data point

A connector may survive a single pressure test and still degrade under repeated service cycles.

02

Cycling loads the full assembly

Seals, insulators, housings and contact interfaces are repeatedly compressed and released.

03

Reliability is cumulative

Small deformation, creep and micro-movement can accumulate over thousands of cycles.

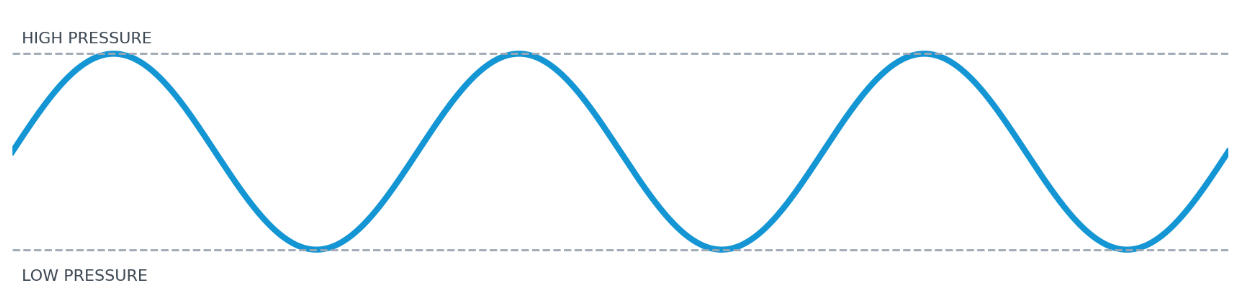

Subsea connectors are engineered to withstand enormous hydrostatic pressure, with many products rated for water depths of 3,000 to 6,000 meters or even deeper. While maximum pressure ratings are often used to evaluate connector performance, pressure cycling—the repeated increase and decrease of pressure during deployment, operation, and recovery—is frequently a more critical factor in determining long-term reliability.

Unlike static pressure, pressure cycling continuously loads and unloads sealing structures, connector housings, and insulating materials. Each cycle introduces small mechanical deformations that may be insignificant individually but can accumulate over thousands of operational cycles. Over time, this cyclic stress can initiate seal fatigue, material creep, and microscopic cracks that eventually compromise connector integrity.

THE ENGINEERING QUESTION

Not only:
“How much pressure can it withstand?”

But also:
“How consistently will it perform after thousands of cycles?”

01  SEALING INTERFACE

One of the most vulnerable areas is the sealing interface. Whether using elastomer seals or hermetic sealing technologies, repeated pressure fluctuations can gradually reduce sealing effectiveness. Once seawater penetrates the connector, corrosion, insulation degradation, and electrical instability may occur, leading to unexpected system failures and costly maintenance.

02  MATERIAL COMPATIBILITY

Material selection also plays a significant role in resisting pressure-cycle fatigue. Differences in the coefficient of thermal expansion (CTE) and elastic properties between metal housings, insulating materials, and sealing components can amplify stress concentrations during repeated loading. Selecting compatible materials and optimizing structural design are therefore essential for maintaining long-term sealing performance in deepwater environments.

03  CONTACT & MECHANICAL RETENTION

Mechanical retention is equally important. Pressure cycling can accelerate micro-movement between contacts and connector components, resulting in fretting wear, increased contact resistance, or intermittent electrical connections. Robust contact structures and precision manufacturing help minimize these risks throughout the service life of subsea equipment.

THE TRUE MEASURE OF A SUBSEA CONNECTOR

Reliable performance is not defined solely by how much pressure a connector can withstand once, but by how consistently it performs after thousands of pressure cycles in the world’s harshest environments.
